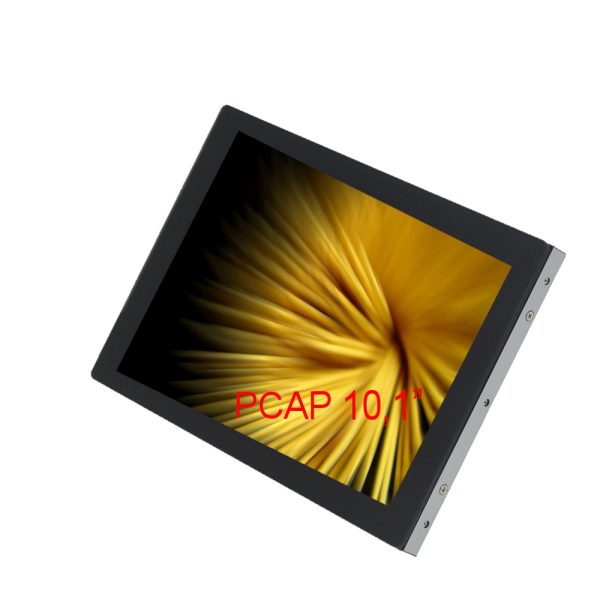

Monitor Táctil de 10.1″ con Altavoces
SKT-101H-CBK02-PSEL2 CON ALTAVOCES
SKT-101H-CBK02-PSEL2 CON ALTAVOCES
- Monitor integrable de 10,1″ pulgadas
- Altavoces: 2 x 2 W.
- Cristal de 4 mm.
- Proyectado Capacitivo de 5 toques simultáneos, antivandálico y resistente al agua.
| General | |
| Model | SKT-101H-CBK02-PSEL |
| Series | Open frame |
| Monitor Dimensions | Width: 258mm Height: 176mm Depth: 38.8mm |
| LCD Type | 10.1” a-Si TFT-LCD, LCM |
| Video Input | VGAI/HDMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 24 volts at 3 amps max |
| Speakers |
2 x 2 watt. speakers |
| Mount Interface |
1)VESA 75*75mm, 100*100mm 2)Rear Mounting |
| LCD Specification | |
| Active Area(mm) | 218 (H) x 136.6(V) |
| Resolution | 1280(RGB)×800 [WXGA] |
| Dot Pitch(mm) | 0.0565×0.1695 (H×V) |
| Nominal Input Voltage VDD | +3.3V |
| Viewing angle (v/h) | 80/80/80/80 (Typ.)(CR≥10) |
| Contrast | 500:1 |
| Luminance(cd/m2) | Panel: 400cd/m2, With PCAP Touch:325cd/m2 |
| Response Time(Rising) | 30 (Typ.)(Tr+Td) ms |
| Support Color | 16.7M (6-bit / 8-bit) |
| Backlight MTBF(hr) | 10K hours |
| Touchscreen Specification | |
| Type | Projected Capacitive touch screen 4mm thick glass |
| Multi touch | 5 points touch HID complian (driverless) |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 24V /3A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | -0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Accesorios del producto
- Cable: USB de 180cm.
- Cable HDMI.
- Fuente de alimentación.
- 2 brackets.
