NP-KV30
{gallery}NIPPON/NP-KV20{/gallery}
NP-KV30
{tab=General Info}

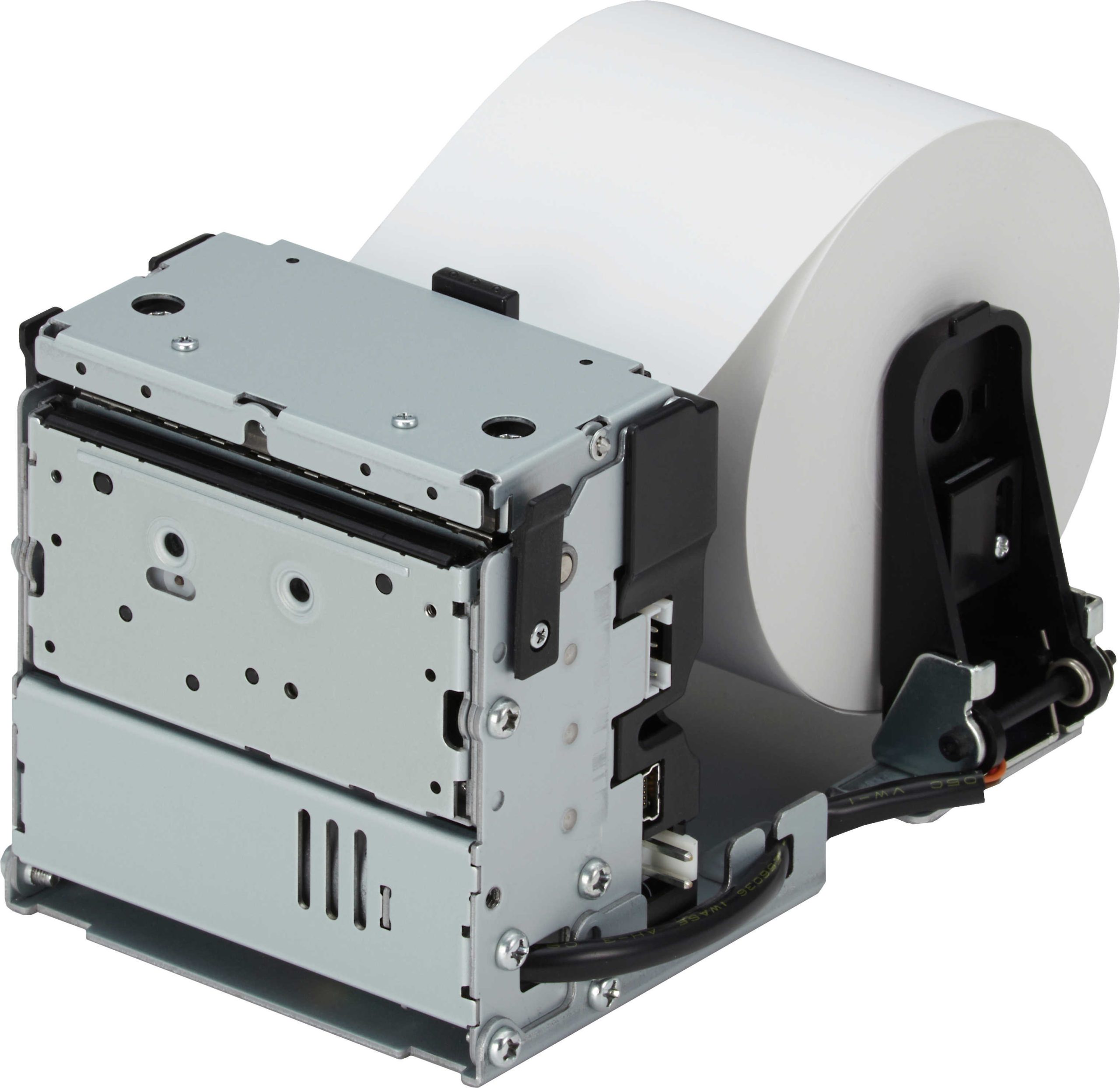

- All in one, ultra compact printer module – Mechanism, auto-cutter, control board and interface are built-in.
- High Speed printing up to 200mm/sec.
- Kiosk type models come with 3way bracket that enable to change the printer module position to, Standard, Tilt and Vertical way, for variety of installations.
{tab=Specifications}
|
SPECIFICATIONS – NP-KV30 |
|
|
Method |
Direct printing thermal |
|
Speed |
Max. 200 mm/s |
|
Paper Width |
80 mm. |
|
Paper Diameter |
90 mm |
|
Thickness |
59-145 µm |
|
Auto-cutter |
Full cut and Partial cut *by command |
|
Barcode |
UPC-A, UPC-E, JAN-13(EAN-13), JAN-8(EAN-8), CODE39, ITF, CODABAR, CODE128, ITF, CODE93, GSI DataBar, QR code (model2), Linked QR code (model 2), Micro QRcode |
|
Character |
International, English, Polish, Russian, Scandinavian, Turkish, Chinese, Korean and Japanese |
|
Interface |
Dual RS232C y USB V2.0 |
|
Operating Voltage |
DC 24 V |
|
Dimensions |
Module type: 107(W) x 46 (D) x 80.7 (H) Kiosk type: 119.6(W) x 118 (D) X 81.4 (H) |
{tab=Options}
- Presenter: NPT-306
- Bezel: BEZ-230, BEZ-231(Con sensor de detección de papel), BEZ-330 (Con LED de color azul o rojo)
- Paper Holder: UPH-LA
